2 x 2/11
Kit: 2 springs

1 x 2/3
Blade

1 x 2/3 + 1 x 2/11 + 1 x 2/30
Kit: blade, spring, adjustment key

1 x 2/30
Adjustment key

1 x 2/12 + 1 x 2/13 + 1 x 2/14 + 1 x 2/15 + 1 x 2/18 + 1 x 2/20
Kit: complete thumb catch assembly with plate, shock absorber

1 x 2/13
Thumb catch spring washer

1 x 2/14
Thumb catch screw

1 x 2/16
Toothed segment

1 x 2/17
Screw for toothed segment

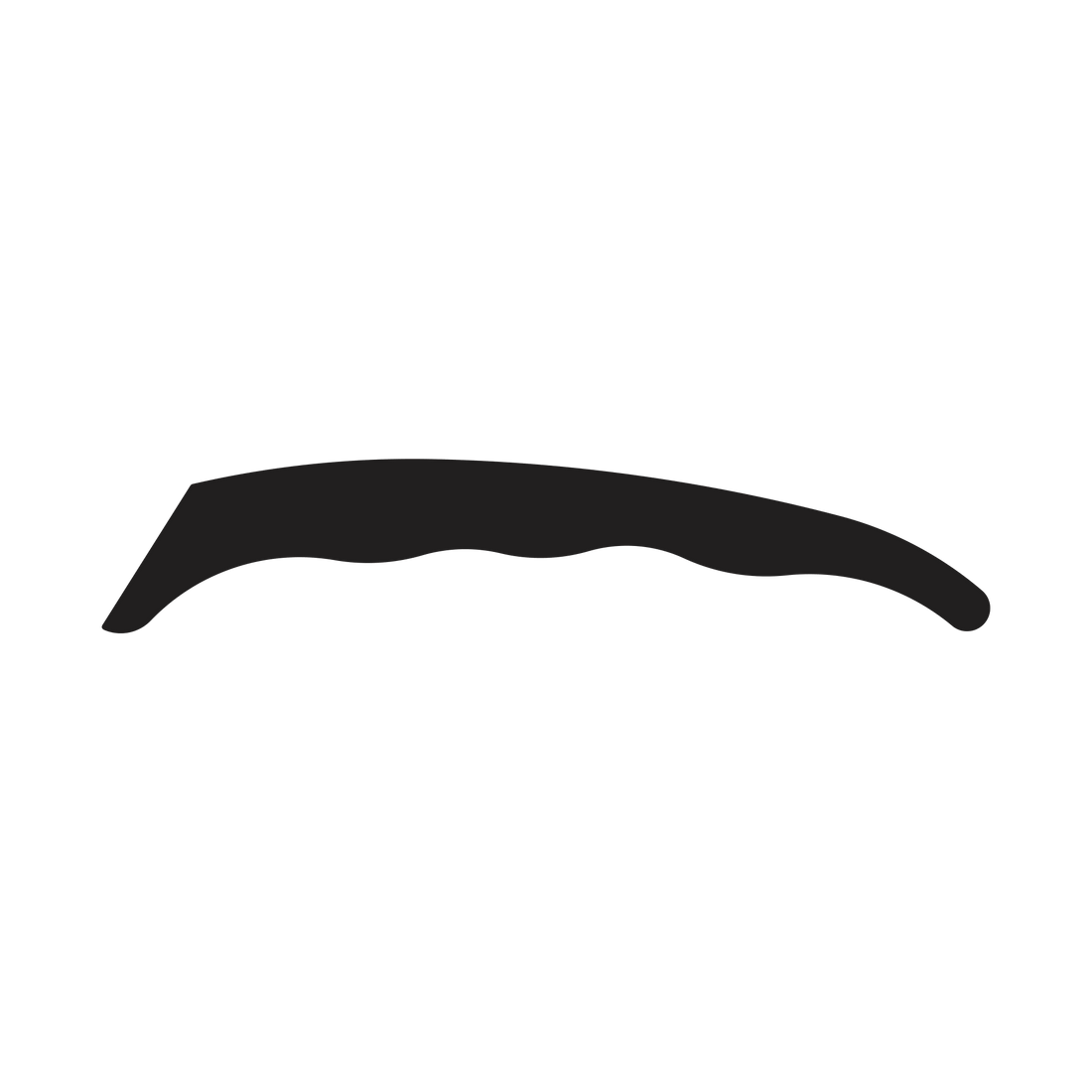

1 x 2/35
Blade handle grip

1 x 2/20
Shock absorber

1 x 2/12
Thumb catch

1 x 2/9
Toothed nut

1 x 2/19
Crimped ring

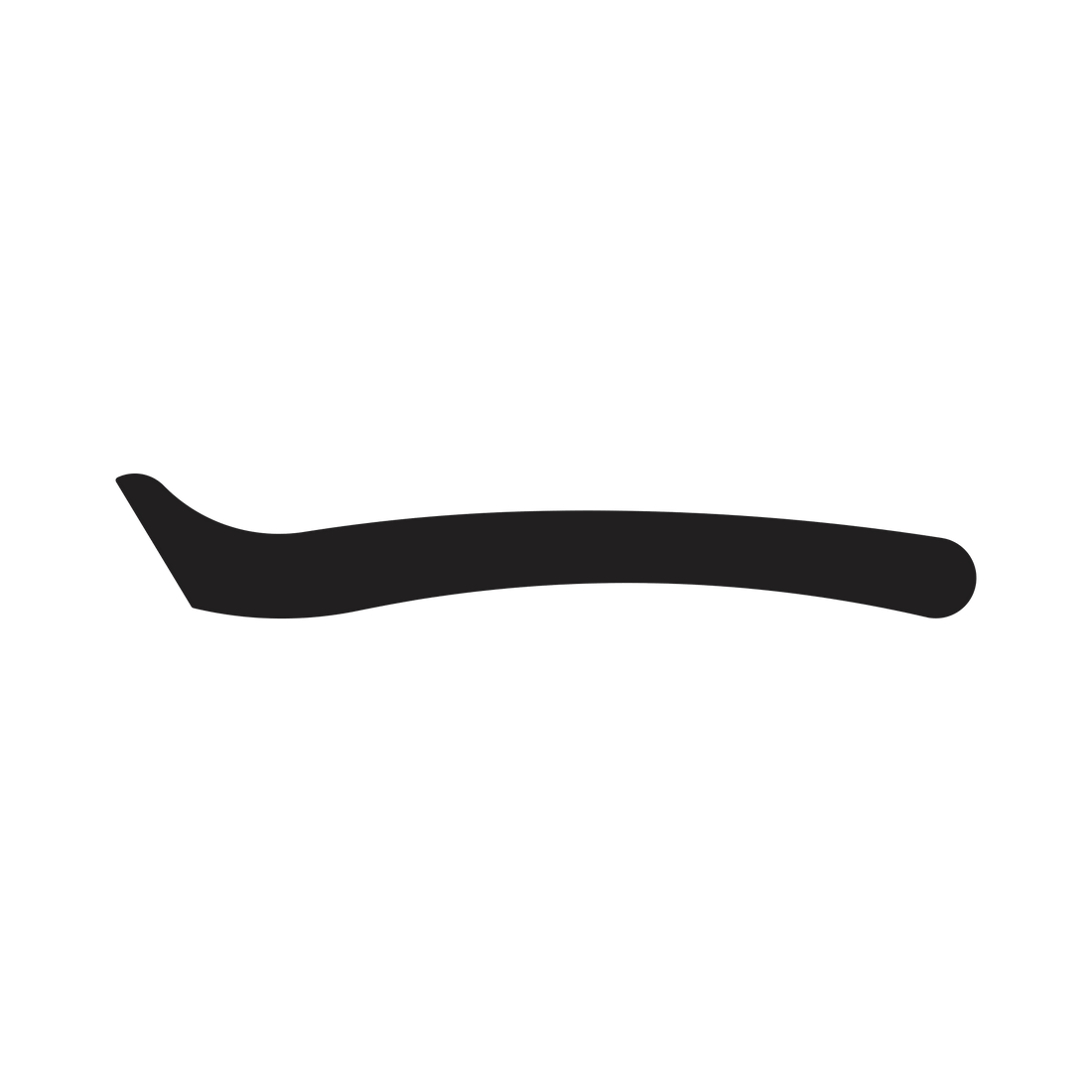

1 x 2/36
Counter blade handle grip

1 x 2/18
Bumper

1 x 2/8 + 1 x 2/9 + 1 x 2/17 + 1 x 2/16
Kit: bolt and nut

1 x 2/12B + 2 x 2/13 + 1 x 2/14
Kit: complete two position thumb catch assembly

1 x 2/5B
Blade rivet

1 x 2/4 + 4 x 2/7
Counter blade with rivets

1 x 2/10
Bushing

F-Tech is a non-stick, hydrophobic coating, resisting to scratches and abrasion. Its unparalleled properties reduce friction between blade, counter-blade and branch to be cut as no one else. As a result, cutting effort is considerably reduced, and it's much easier to cut hardwoods or large-diameter wood. F-Tech also prevents sap and bacteria from adhering to the blade. A considerable asset for increasing your yield and reducing musculoskeletal pain.

1 x 2/7
Counter blade rivet

1 x 2/8 + 1 x 2/9
Kit: bolt/nut
